600 VRT Vertical Machine Deluxe
Contact our team for machine specifications, pricing and availability.
Features
- digital limit switch
- PLC controlled
The 600 VRT Vertical Injection Moulding Machine is designed to deliver efficient and cost-effective production for a wide range of PVC footwear and plastic products. Built using robust engineering standards, this machine provides excellent moulding precision, high production output, and reliable performance for continuous industrial operations.
Featuring an advanced hydraulic injection system and efficient heating controls, the 600 VRT machine ensures uniform material distribution and consistent product formation. Its user-friendly design allows operators to manage production easily while maintaining accuracy and productivity throughout the manufacturing cycle.

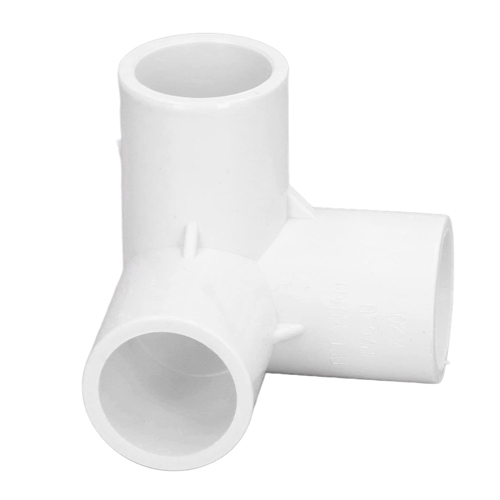

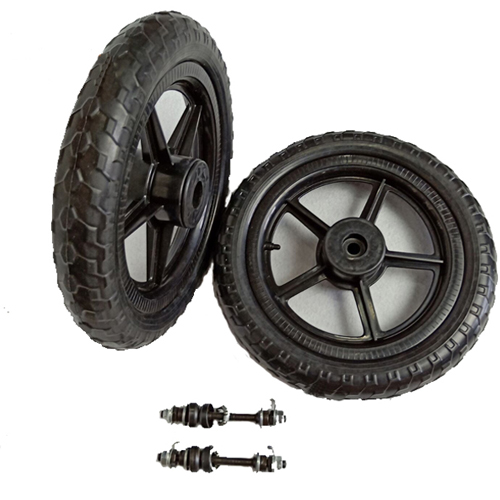

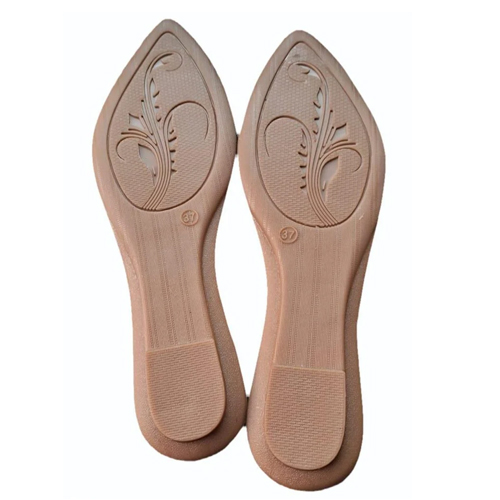

The machine is suitable for manufacturing PVC slippers, sandal soles, electrical fittings, sanitary fittings, automotive accessories, and various industrial components.
With its compact design, low maintenance requirements, and durable construction, the 600 VRT machine is an ideal choice for manufacturers seeking dependable production equipment.
| INJECTION UNIT | |
|---|---|
| Diameter of Screw | 55 mm |
| Maximum Shot Capacity | 600 Grms. |
| Plasticizing Capacity | 60 Kgs/hr |
| Stock of Screw | 230 mm |
| Number of Screw Rotation | 245 r.p.m. |
| Absolute Injection Pressure | 11.0 m/t |
| Specific Injection Pressure | 400 Kgs/cm2 |
| Mould Clamping Unit | |
| Clamping Pressure | 23m/t |
| Clamping Stroke | 100 mm |
| Maximum Mould Size (LxWxH) | 300 X 200 X 225mm |
| ELECTRICAL EQUIPMENTS | |
| Motor for drive of oil pump | 8.5 H.P |
| Motor for driving Plasticizing Screw | 8.5 H.P |
| Heating Capacity | 4.0 K.W. |
| Heating Control (Pyrometer) | 3 No. |
| (Sunvik) | 3 Nos. |
| HYDRAULIC EQUIPMENTS | |
| Hydraulic Pump | 62 Litres/mm |
| Pump Pressure | 120 Kgs/cm2 |
| GENERAL | |
| Floor area of machine | 750 mm X 1150 mm |
| Weight of Machine | 1.8 Ton(1800kg) |
