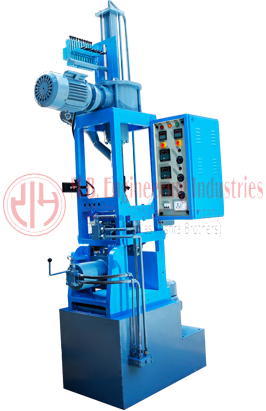

Vertical Injection Moulding Machine 600 VRT

Home Vertical Injection Moulding Machine 600 VRT

MOULDING MACHINE 600 VRT

technology-innovation


Technical Specification

INJECTION UNIT
Diameter of Screw 55 mm
Maximum Shot Capacity 600 Grms.
Plasticizing Capacity 60 Kgs/hr
Stock of Screw 230 mm
Number of Screw Rotation 210 r.p.m.
Absolute Injection Pressure 11.0 m/t
Specific Injection Pressure 400 Kgs/cm2

Mould Clamping Unit
Clamping Pressure 23m/t
Clamping Stroke 100 mm
Maximum Mould Size (LxWxH) 300 X 200 X 225mm

ELECTRICAL EQUIPMENTS
Motor for drive of oil pump 7.5 H.P
Motor for driving Plasticizing Screw 7.5 H.P
Heating Capacity 3.25 K.W.
Heating Control (Pyrometer) 3 No.
(Sunvik) 3 Nos.

HYDRAULIC EQUIPMENTS
Hydraulic Pump 62 Litres/mm
Pump Pressure 120 Kgs/cm2

GENERAL
Floor area of machine 750 mm X 1150 mm
Weight of Machine Monted on Machine


Features

  1. Model VRT 600 is designed for molding of all kinds of Plastic Raw materials, Specialize in manufacturing one colour, foam, non foam shoes, Sandals, slippers, full
             plastic footwear and soles. Auto parts, sanitary and electrical fittings etc.
  2. Sturdy design and simplicity in operation.
  3. Vertical type injection system: This system outreaches the traditional design. As the dimension, is only half Of the traditional machine.
  4. Mould space : It is easy to match with various kinds of moulds and reduce limitations of Mould design.
  5. emperature controlled by three temprature controllers: Gives perfection in maintaining the melt Temp. with least variation.
  6. Ergonomically designed and inter changeability.
  7. Also available VRT 400 and VRT 1000 tailor made according to customer's requirement.
